Mounted vehicle
HD 3.5 ton Long Body

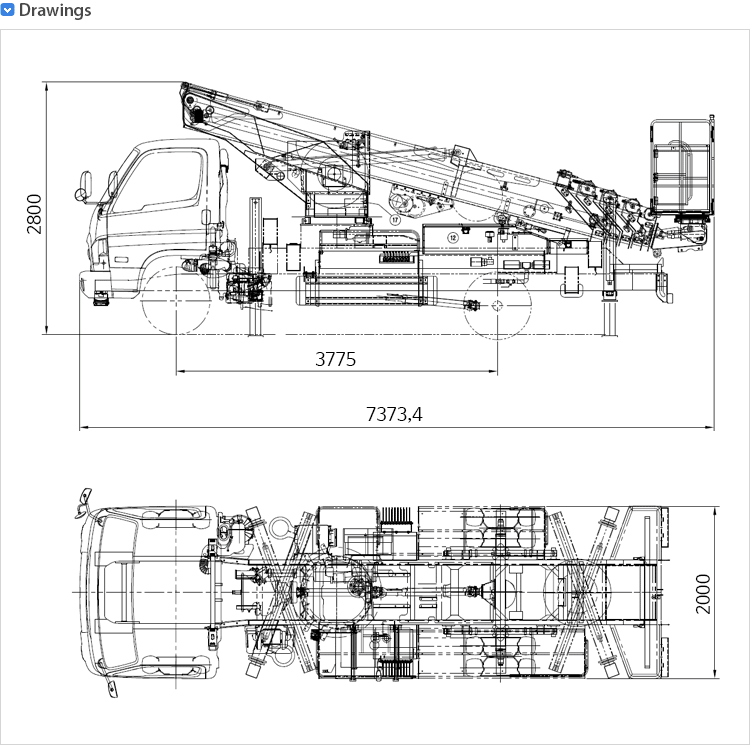

Equipment (HLW) 2,800 7,300 2,000mm

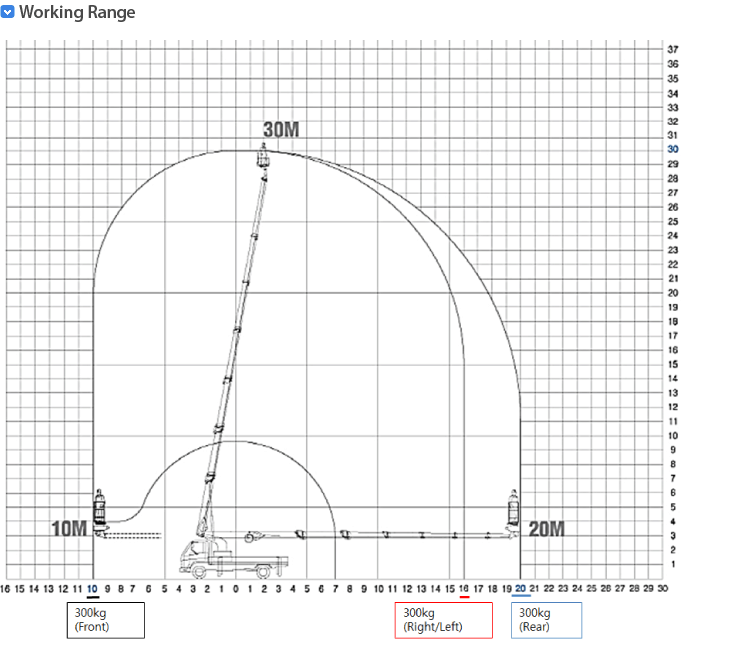

Workable height 30m
Boom steps 6 - Step Interlocking
Riding platform (HLW) 1,150 1,700(3,000) 600(1,100)mm
Outrigger (FrontRear) 6,250 6,250mm
Basic spec.

Outrigger sensor, Electric Reel, Work Light, Oil Cooler, AML Equipment,
Large tool box, Wireless Remote Control

Optional spec. Auxiliary winch, Front bumper Jack, Air compressor, AC Power Inverter
The above specifications are subject to change without notice.
